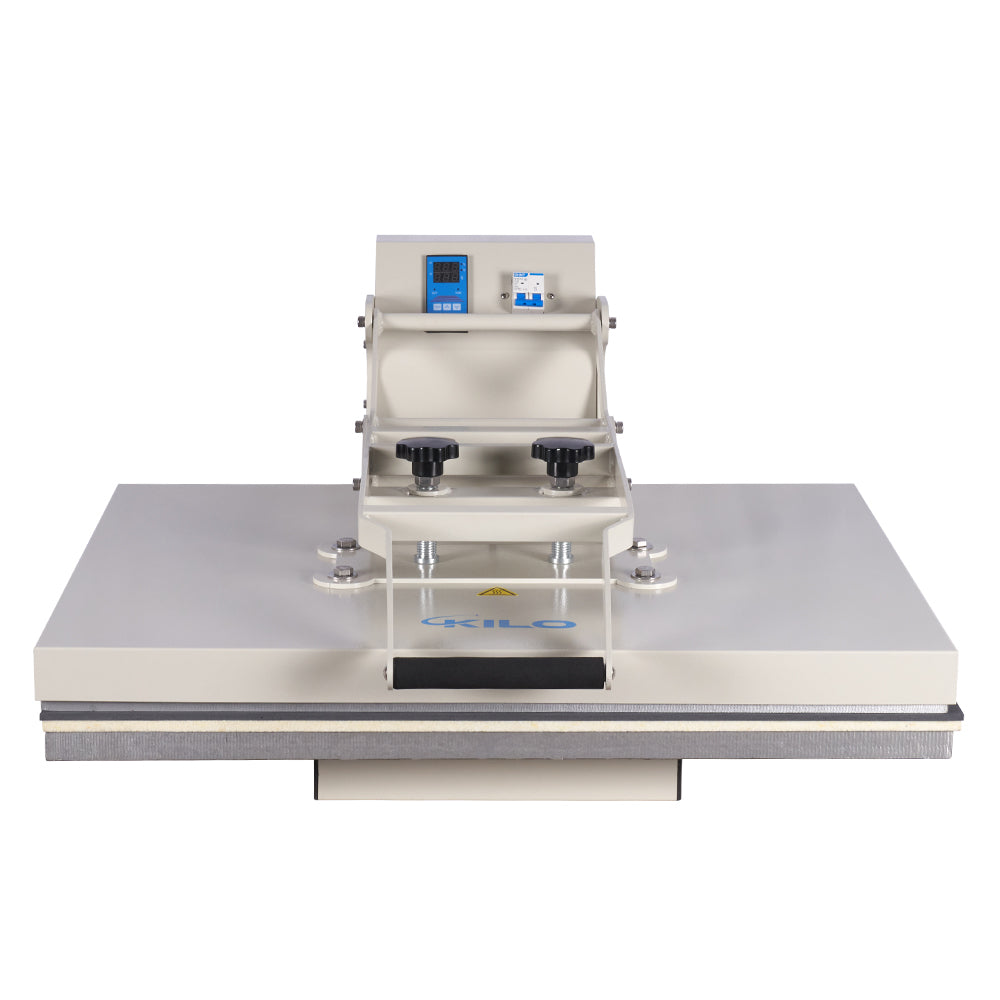

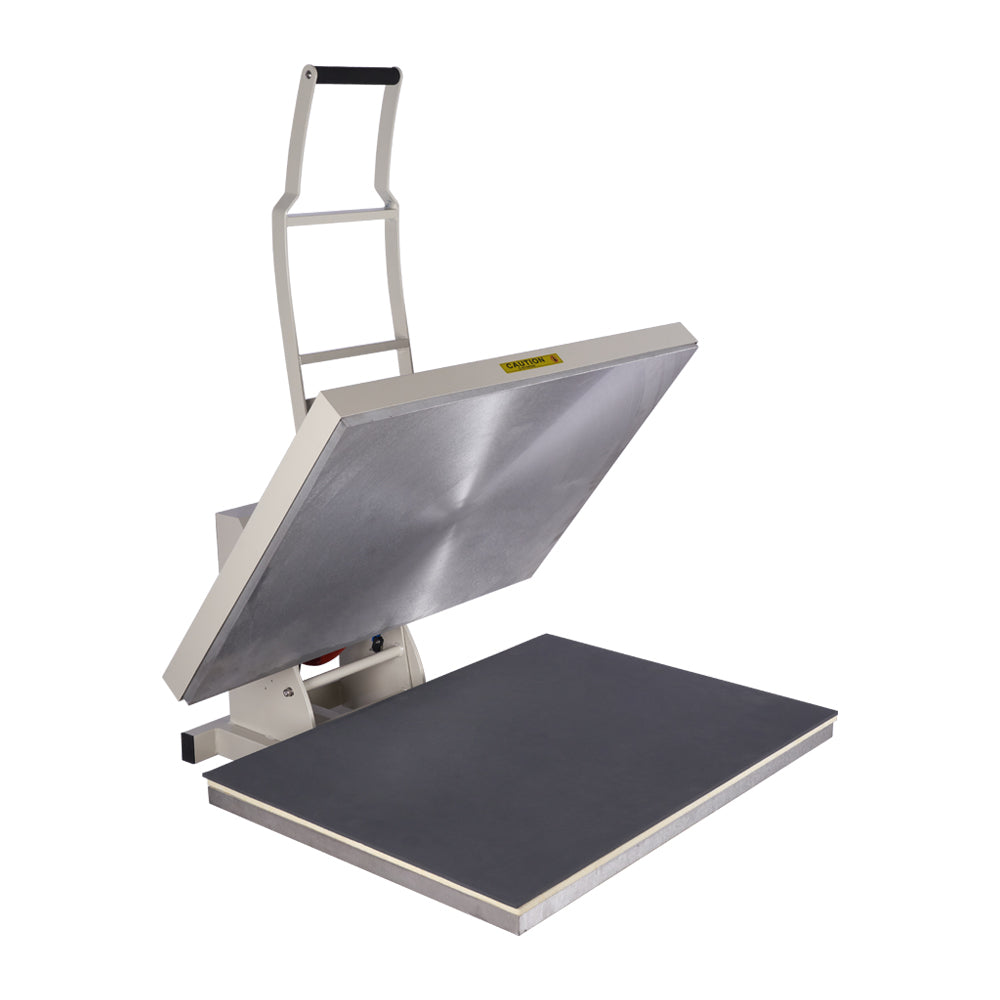

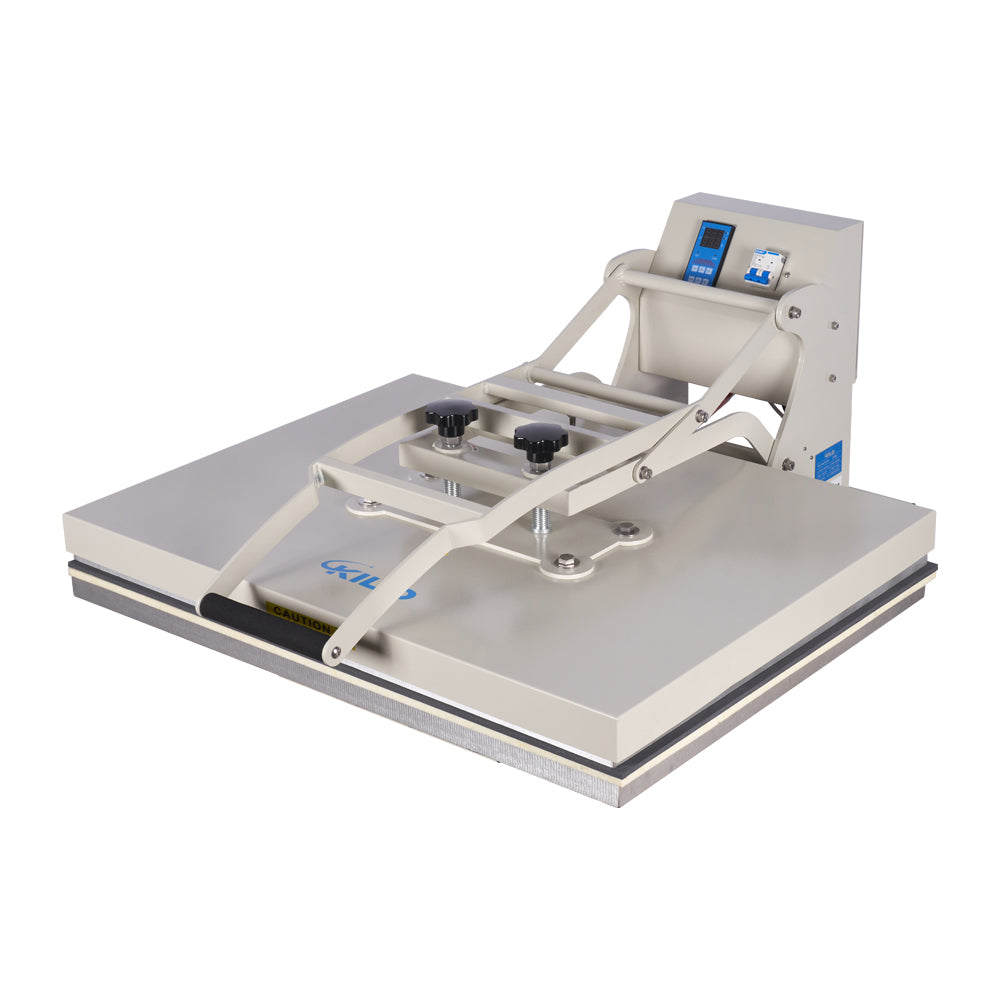

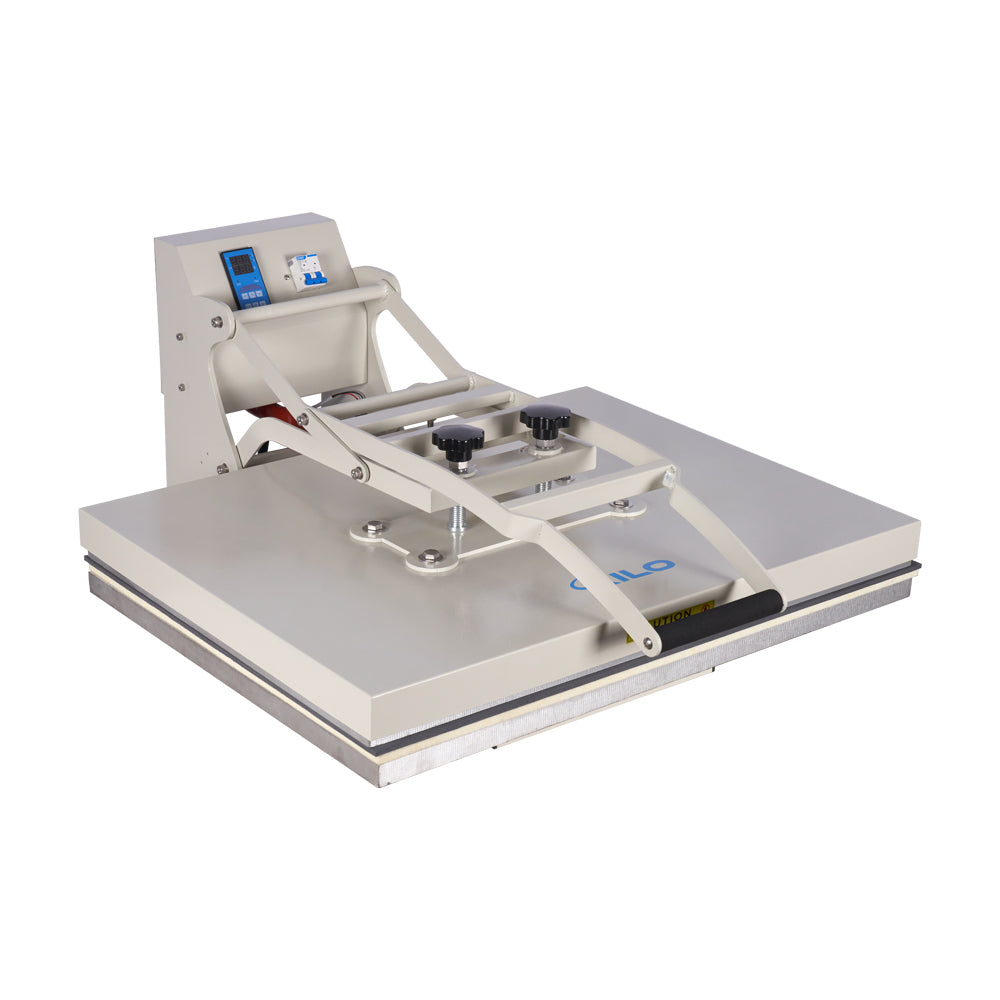

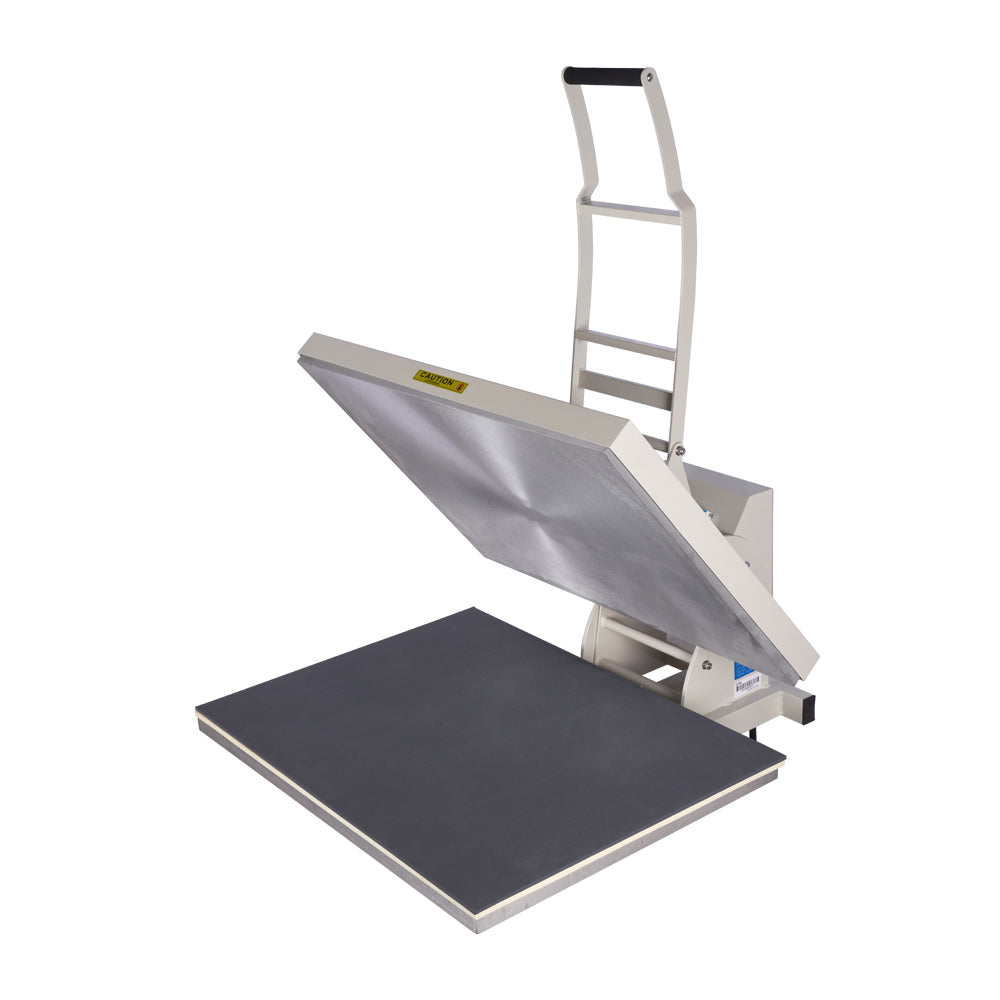

24x32 Large Format Manual Heat Press Machine 110V,4500W (No Plug)

24x32 Large Format Manual Heat Press Machine 110V,4500W (No Plug)

Our Price

£2,071.00 GBP (each)

Market Price £3,654.00
You Save 43% (£1,583)
Our Price

£2,071.00 GBP (each)

📣 Please SELECT CORRECT Variant & Quantity before place an order and you will receive what you SELECT

Buy on Amazon
website checkout security

Specifications

Place of Origin China
Main Color Grey
Main Material Aluminium
Dangerous Goods #dangerFlag#

Dimensions & Weights

Assembled Length (in.) 31.50
Assembled Width (in.) 32.20
Assembled Height (in.) 28.00
Weight (lbs) 194.04

Product Features

  • 1. The heat press machine is digital touch screen controlled,the votaloge is 110V, without plug
  • 2. Easily adjust the heat press machine certain pressure
  • 3. Best selling heat press model for heat transfer and sublimation
  • 4. Lifetime factory on-line service
  • 5. Large format die cast aluminium base plate
  • 6. Special high temperature cloth for hot stamping machine covered
  • 7. Heat press machine used for cloths Sublimation
  • 8. Heat press machine with optional Infrared positioning makes more sccurate for small items printing
  • 9. High accuracy of signal indication when press process is completed

Description

Manual Heat Press Machine
1. Heat press machine suitable for larger area heat transfer press operations 2. The heating plate adopts the structure of double pressure rods and double helical buttons, which can adjust the pressure more evenly and more precisely 3. The required pressure ensures the good press between the upper and lower plates, with better pressing effect 4.For T-shirts, mouse pads, license plates, magnetic material and more 5. Special high temperature cloth for hot stamping machine covered 6. Large format heat press machine is optional Infrared ray positioning 7. High accuracy of signal indication when press process is completed
High Pressure Manual Heat Press Machine
The heating plate adopts special ultra-precision wire tube technology, which can effectively ensure the temperature Equilibrium and peace; The surface of the heating plate is sprayed with Special high temperature cloth, which can effectively ensure the surface of the heating plate smooth surface, durable; Full digital temperature and time display, temperature error(±2℃); Designed according to human engineering , machine is easy to operate with even pressure Open and close heating plate, easy to use Pressure is adjusted by connecting rod, the adjustment torque is small and the range is large

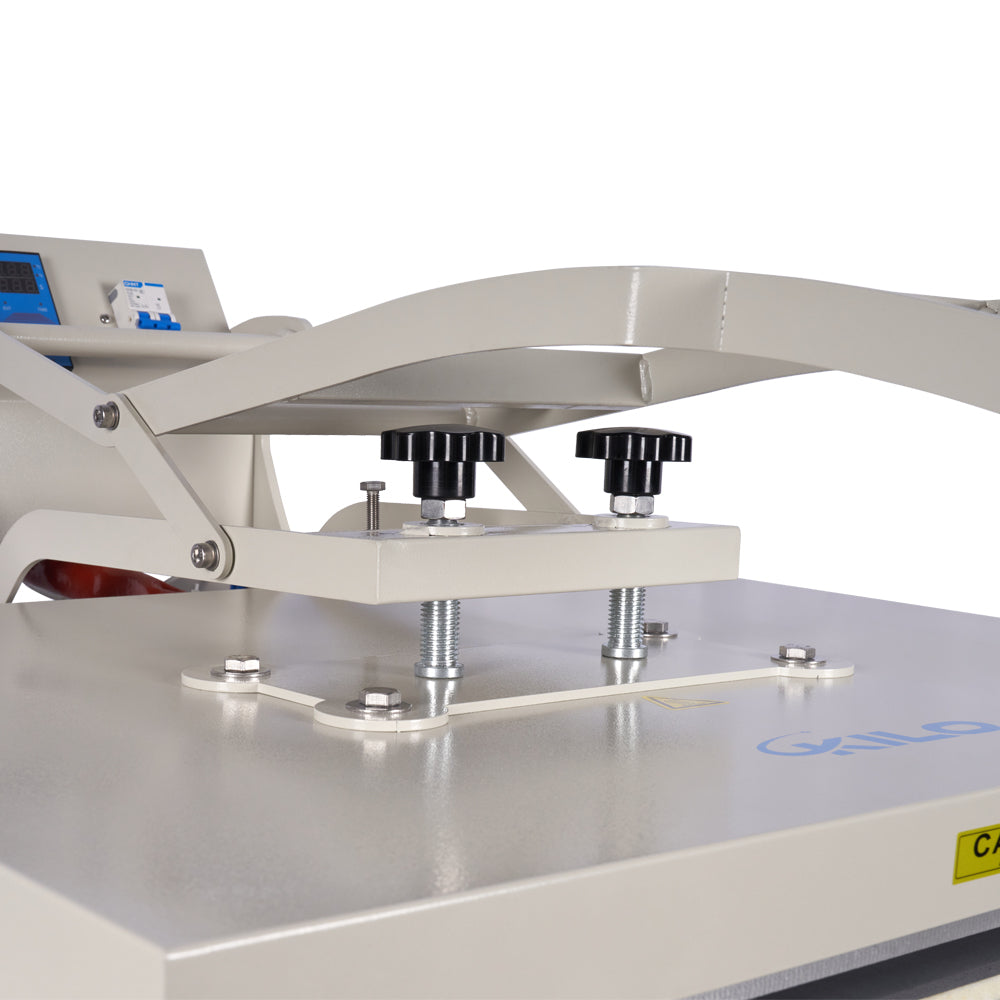

Large Format Heat Press Machine with Double Pressure Knob to Make Pressure More Uniform
.
Raw Materials Cutting
Raw materials preparing for the production
Laser Cutting
Use laser cutting machine to cut steel plate on raw material
Round Tube Cutting
Cutting the round tube into small spares
Steel Plate Bending
According to the model, bend and shape the raw section steel
Welding
Container Loading
Assembling
.
QC Inspection
.
Packing
.
.
.
.
.
.
.
.
.
Technical features:
Voltage(V): 110V / Single Phase
Power(KW): 4.5
Temperature(℃): 0-299
Delaying time(S): 1-999
G.W.(LB): 205.1
Packing Size(in): 40.9X33.1X20.9
Accept Thickness: Max. 2.36'' Thick Items
Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size: 24 x 32'' (60 x 80cm)
Pure Cotton Time: 15s-25s
Polyester Time: 40s
Chemical Fiber Time: 10s-40s
Pearl Board Time: 60s-100s
Metal Pendant Time: 60s
Mousepad Time: 50s
Vitrolite Time: 180s
Ceramics Time: 180s
Temperature Requirements of Different Materials
Pure cotton 356℉-428℉ (180℃-220℃)
Polyester 356℉ (180℃)
Chemical fiber 302℉-356℉ (150℃-180℃)
Pearl board 356℉ (180℃)
Metal pendant 356℉ (180℃)
Mousepad 374℉ (190℃)
Key ring pendant 356℉ (180℃)
Ceramics 356℉-428℉ (180℃-220℃)
